Name: 1752104
Brand: Phoenix Contact
SKU: 1752104
Price: 1.45000 USD
Availability: InStock

new-10%

1752104

Manufacturer part number:1752104

Manufacturer:Phoenix Contact

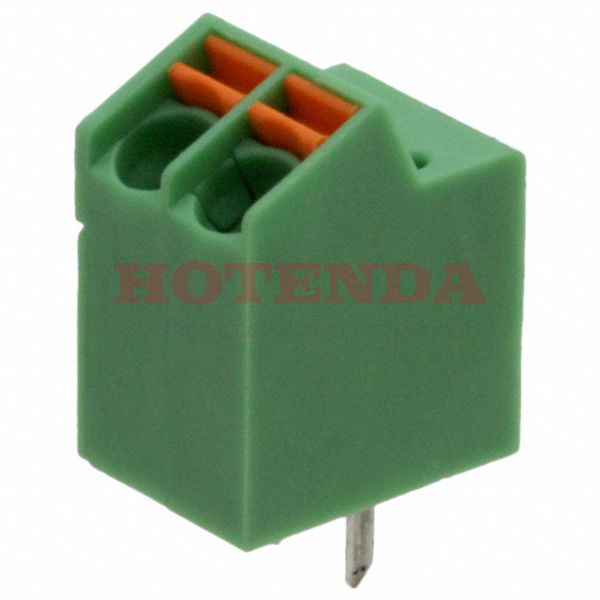

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole 25° (155°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-26 AWG COMBICON SPTA

Case Package:SOT-23

Datasheet:1752104 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.32999g
Packaging	Bulk
Series	COMBICON SPTA
Published	2010
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	200V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	12.4mm
Current Rating	9A
Voltage - Rated AC	160V
Approval Agency	CB, VDE, cULus
Number of Contacts	2
Wire Gauge	16-26 AWG
Voltage	300V
Max Current Rating	9A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	26 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	2
Safety Approval	UL
Mating Orientation	25° (155°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Stripping Length	8mm
Fastening Method	SPRING LOADED
Length	7.6mm
Width	10mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1752104 Product Details

1752104 Overview

A Through Hole mounting type is specified for the device.A Bulk case is used for packaging.The product belongs to the COMBICON SPTA Series.Additionally, there are other features such as PA, UL 94V0.By Through Hole it's mounted.
