Name: 1985917
Brand: Phoenix Contact
SKU: 1985917
Price: 2.12000 USD
Availability: InStock

new-10%

1985917

Manufacturer part number:1985917

Manufacturer:Phoenix Contact

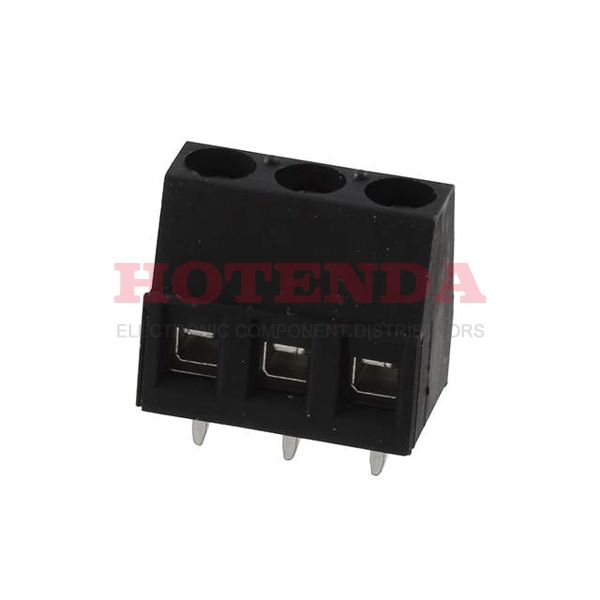

Description:0.200 5.08mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDS

Case Package:SOT-23

Datasheet:1985917 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	3.899987g
Packaging	Bulk
Series	COMBICON MKDS
Published	2003
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Connector Type	Screw
Number of Positions	3
Color	Black
Number of Rows	1
Voltage - Rated	320V
Additional Feature	PA, UL 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Depth	9.8mm
Current Rating	17.5A
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	200V
Max Current Rating	24A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	2.5 mm2
Height	13.8mm
Length	9.8mm
Width	17.78mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1985917 Product Details

1985917 Overview

A Screw package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON MKDS Series of products.Additionally, there are other features, such as PA, UL 94V-0.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.This chip should not be supplied with a voltage greater than 200V.
