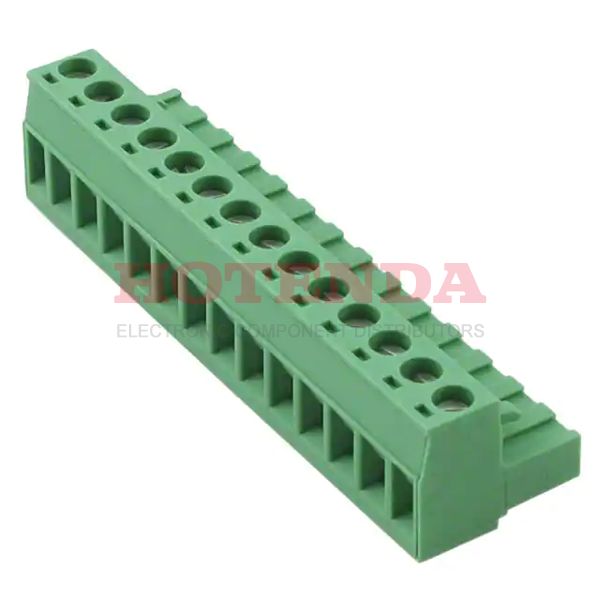

Name: 1754685
Brand: Phoenix Contact
SKU: 1754685
Price: 14.68000 USD
Availability: InStock

new

1754685

Manufacturer part number:1754685

Manufacturer:Phoenix Contact

Description:1754685 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754685 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	350.000009g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	14
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	14
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	65mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1754685 Product Details

1754685 Overview

A Screw, Socket package is included with it.The device's mounting type is Free Hanging (In-Line).An Bulk case is utilized for packaging the product.This is from the COMBICON MSTB Series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.Several benefits come from the Retention Latches (Non-Wire Side) feature.In this case, Cable, Free Hanging, Plug-In mounts the part.The benefts of this part are similar to those of other Plug, Female Sockets products.
