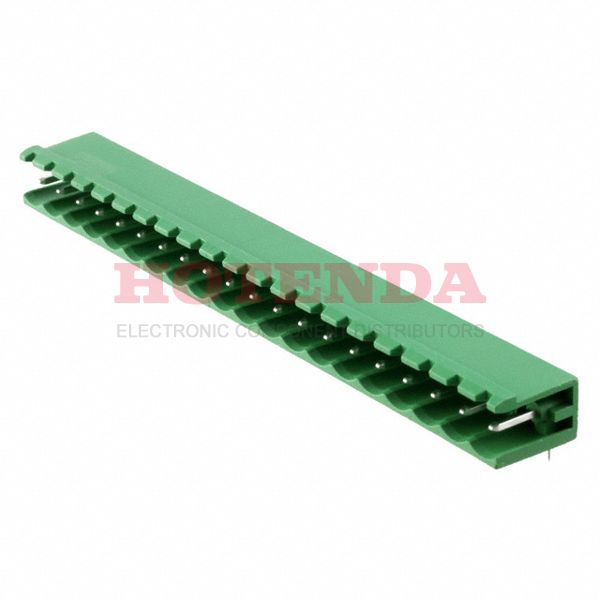

Name: 1754795
Brand: Phoenix Contact
SKU: 1754795
Price: 8.23000 USD
Availability: InStock

new-10%

1754795

Manufacturer part number:1754795

Manufacturer:Phoenix Contact

Description:1754795 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754795 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (2 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Contact Mating Finish	Tin
Number of Decks	1
Current - UL	15A
Voltage - IEC	400V
Number of Ways	20
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	20
Length	100mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1754795 Product Details

1754795 Overview

This device has a mounting type of Through Hole.This product is packaged in a case marked Bulk.Among the products in the COMBICON MSTB Series, it is one of the most popular.Among other features are PBT, 94V-0, to name only a few.In this case, Through Hole mounts the part.There are a lot of advantages this part has in common with other Header, Male Pins, Shrouded (2 Side) parts.
