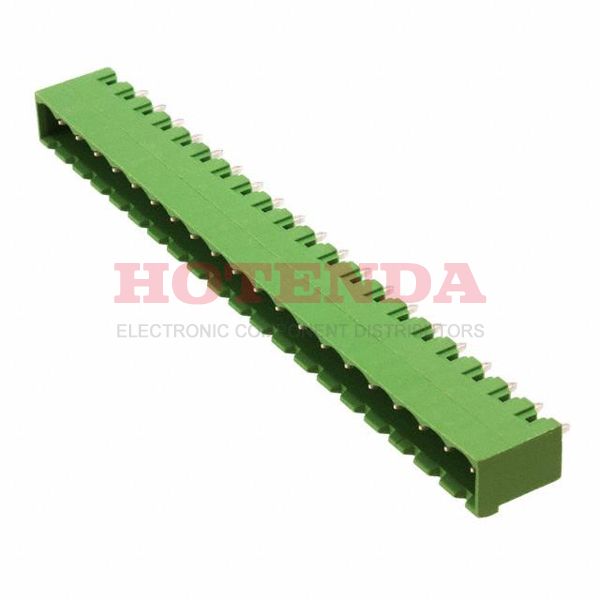

Name: 1755684
Brand: Phoenix Contact
SKU: 1755684
Price: 8.23000 USD
Availability: InStock

new

1755684

Manufacturer part number:1755684

Manufacturer:Phoenix Contact

Description:1755684 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755684 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Decks	1
Voltage - IEC	400V
Number of Ways	20
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	20
Height	15.9mm
Length	102mm
Width	102mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755684 Product Details

1755684 Overview

This product is packaged in a Plug box.This device has a mounting type of Through Hole.A Bulk case is used for packaging.This product is in the COMBICON MSTBVA Series.There are also other features, like PBT, 94V-0, to name a few.There is a mounting hole at Through Hole.It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.
