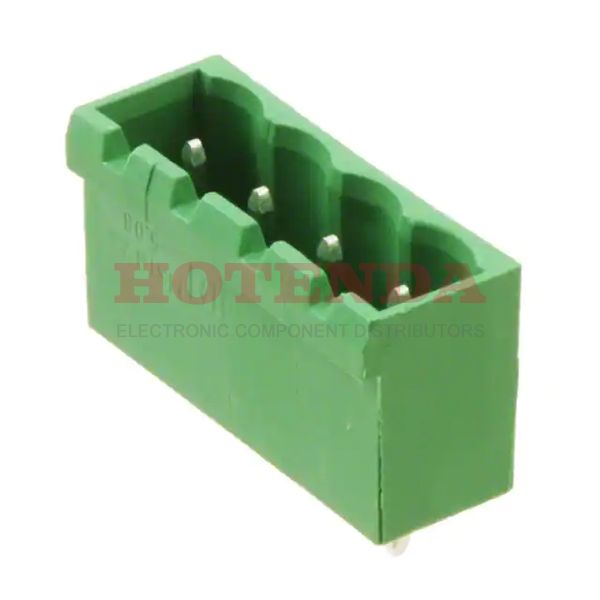

Name: 1755752
Brand: Phoenix Contact
SKU: 1755752
Price: 1.55000 USD
Availability: InStock

new-10%

1755752

Manufacturer part number:1755752

Manufacturer:Phoenix Contact

Description:1755752 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755752 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	154.999997g
Packaging	Bulk
Published	2001
Series	COMBICON MSTBVA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated DC	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Voltage - Rated AC	250V
Approval Agency	CB, CSA, UL, VDE, cULus
Lead Pitch	5.08mm
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	4
Number of Decks	1
Voltage - IEC	630V
Number of Ways	4
Safety Approval	CB; CSA; CUL; EAC; EN; UL; VDE
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	12.15mm
Length	22.32mm
Width	22.32mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1755752 Product Details

1755752 Overview

This product is packaged in a Plug box.Through Hole is the mounting type of the device.To package the product, we use a Bulk case.It's from the COMBICON MSTBVA Series.A minimum temperature of -40°C is required for the operation of this device.Mounted by Through Hole.The benefts of this part are similar to those of other Header, Male Pins, Shrouded (4 Side) products.
