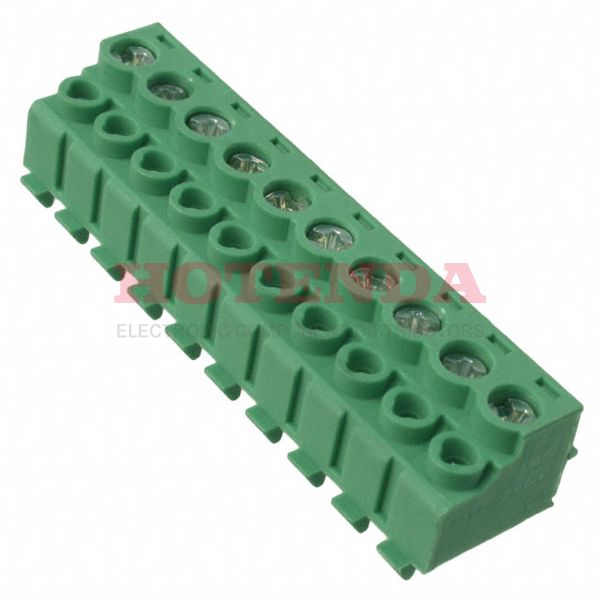

Name: 1755813
Brand: Phoenix Contact
SKU: 1755813
Price: 2.78000 USD
Availability: InStock

new-10%

1755813

Manufacturer part number:1755813

Manufacturer:Phoenix Contact

Description:1755813 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755813 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON PT
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug for Unshrouded Header
Color	Green
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.484 12.30mm
Reach Compliance Code	not_compliant
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	10
Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1755813 Product Details

1755813 Overview

It comes in Screw packaging.Free Hanging (In-Line) indicates that the device is mounted.It is necessary to use a Bulk case for packaging the product.It belongs to the COMBICON PT Series of products.By Cable, Free Hanging it's mounted.There are many benefits that this part shares with other Plug for Unshrouded Header products as well.
