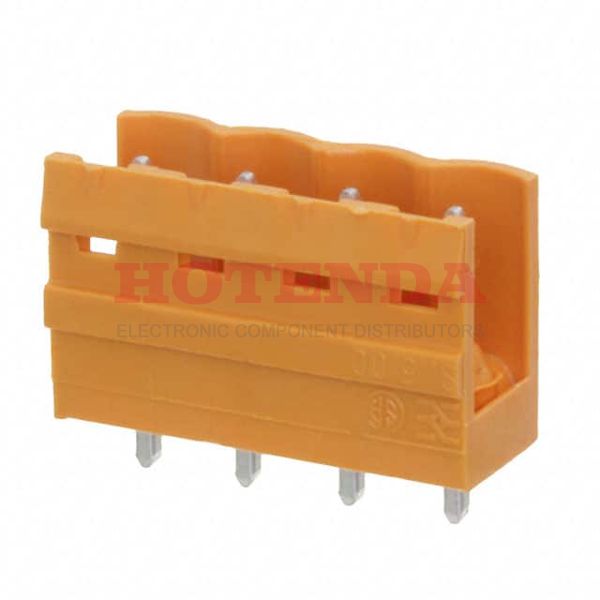

Name: 1581340000
Brand: Weidmüller
SKU: 1581340000
Price: 0.81000 USD
Availability: InStock

new-10%

1581340000

Manufacturer part number:1581340000

Manufacturer:Weidmüller

Description:1581340000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1581340000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (2 Side)
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Total Number of Contacts	4
Ingress Protection	IP20
Depth	8.5mm
Insulation Height	0.472 12.00mm
Current Rating	15A
Number of Conductors	ONE
Reference Standard	UL, CSA
Termination Style	Solder
Reliability	COMMERCIAL
Approval Agency	CSA, UR
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Contact Style	RND PIN-SKT
Insulation Resistance	1MOhm
Body/Shell Style	RECEPTACLE
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	15A
Number of Levels	1
Current	10A
Number of Poles	4
Contact Pattern	RECTANGULAR
Contact Mating Finish	Tin
Voltage - IEC	400V
Header Orientation	Vertical
Current - IEC	18A
Hole Diameter	1.3 mm
Length	20mm
Width	8.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1581340000 Product Details

1581340000 Overview

Mounting type Through Hole is selected for the device.We pack the product in a Bulk case.The product belongs to the Omnimate SL Series.Through Hole represents the mounting point for the part.This device operates at a temperature of -50°C~100°C.With this part, you get a lot of benefits that you won't find in other Header, Male Pins, Shrouded (2 Side) products.
