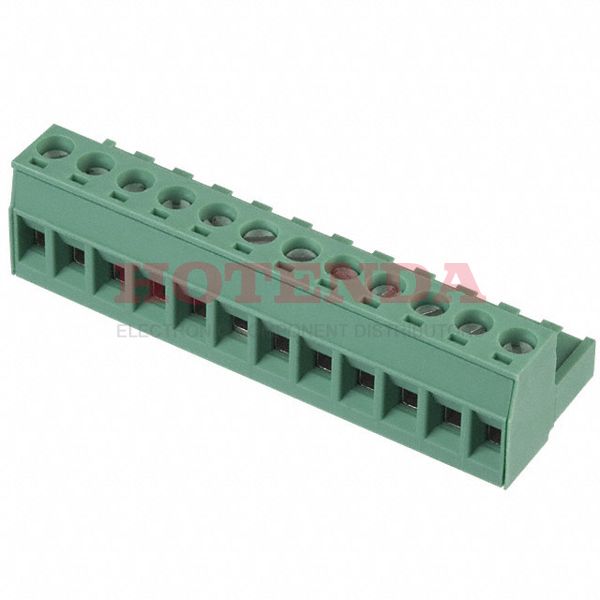

Name: 1757116
Brand: Phoenix Contact
SKU: 1757116
Price: 12.57000 USD
Availability: InStock

new

1757116

Manufacturer part number:1757116

Manufacturer:Phoenix Contact

Description:1757116 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757116 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	127.999996g
Packaging	Bulk
Published	2005
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	250V
Approval Agency	CB, CSA, UL, VDE, cULus
Lead Pitch	5.08mm
Number of Contacts	12
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	18.3mm
Length	60.96mm
Width	60.96mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757116 Product Details

1757116 Overview

It comes in a Screw, Socket package.Free Hanging (In-Line) indicates that the device is mounted.Packaged in a Bulk case.It's part of the COMBICON MSTB Series.Among other features are STANDARD: UL 94V-0, PA, to name only a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Cable, Free Hanging represents the mounting point for the part.This chip should not be operated above 250V volts.The benefts of this part are similar to those of other Plug, Female Sockets products.
