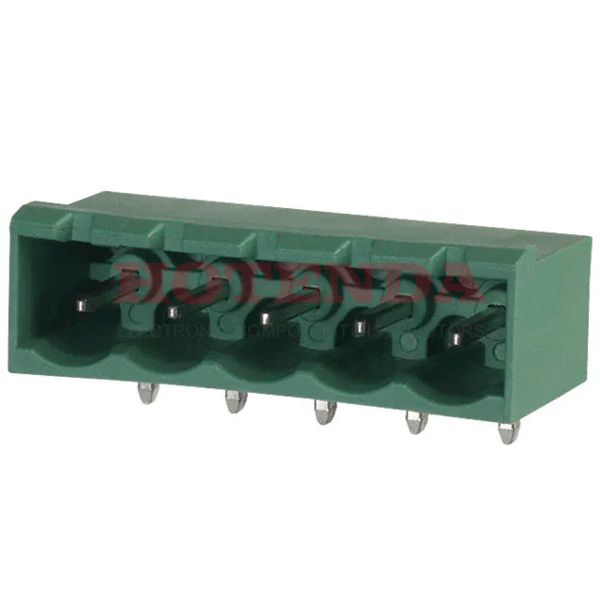

Name: 1757271
Brand: Phoenix Contact
SKU: 1757271
Price: 1.94000 USD
Availability: InStock

new-10%

1757271

Manufacturer part number:1757271

Manufacturer:Phoenix Contact

Description:1757271 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757271 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	152.999995g
Packaging	Bulk
Published	2001
Series	COMBICON MSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	5
Color	Green
Number of Rows	1
Gender	Male
Additional Feature	PBT, UL 94V-0
Voltage - Rated DC	320V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage - Rated AC	250V
Approval Agency	CSA, EN, UL, VDE
Lead Pitch	5.08mm
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Poles	5
Number of Decks	1
Voltage - IEC	400V
Number of Ways	5
Safety Approval	UL; VDE; CSA
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	12.1mm
Length	27.4mm
Width	27.32mm
Thickness	20.32mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757271 Product Details

1757271 Overview

Currently, it is packaged in Plug.The mounting type of the device is Through Hole.Packaging is performed using a Bulk case.Product number COMBICON MSTBA belongs to the COMBICON MSTBA Series.Additionally, there are features like PBT, UL 94V-0, just to name a few.Through Hole is the mounting point for the part.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
