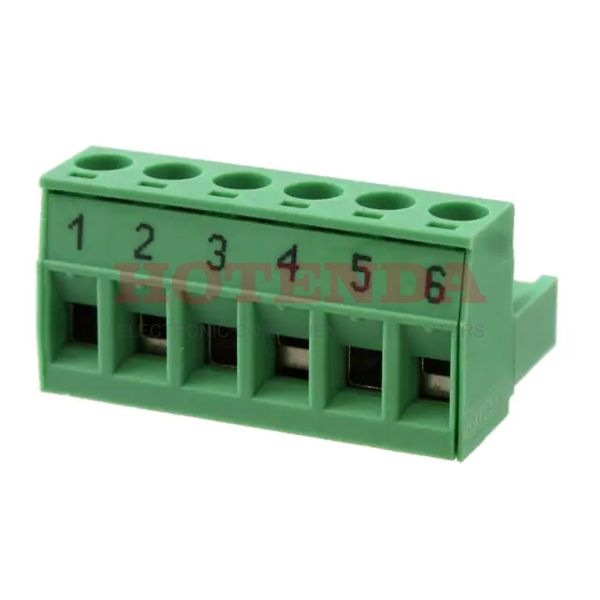

Name: 1758380
Brand: Phoenix Contact
SKU: 1758380
Price: 6.80000 USD
Availability: InStock

new

1758380

Manufacturer part number:1758380

Manufacturer:Phoenix Contact

Description:1758380 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1758380 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	10.429988g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	6
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Height	18.3mm
Length	15mm
Width	30.48mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1758380 Product Details

1758380 Overview

Packaging is Screw, Socket.There is a mounting type of Free Hanging (In-Line) for this device.To package the product, we use a Bulk case.The product belongs to the COMBICON MSTB Series.A number of advantages can be derived from its Positions Stamped, Retention Latches (Non-Wire Side) feature.It is mounted by Free Hanging, Plug-In.This part shares lots of benefits with other Plug, Female Sockets products.
