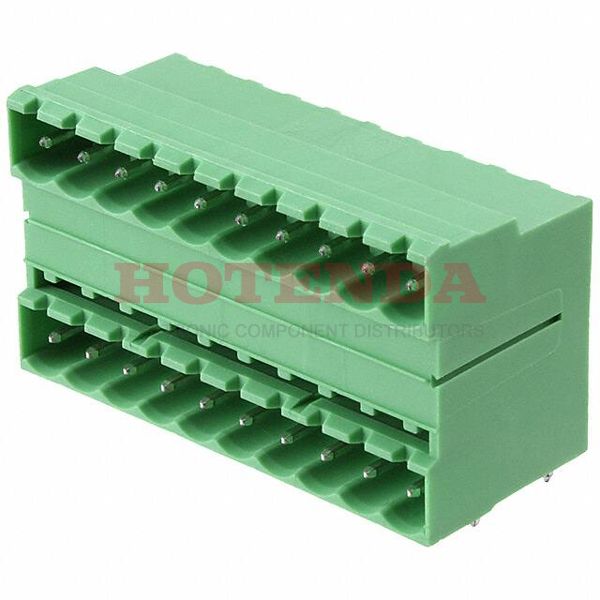

Name: 1762774
Brand: Phoenix Contact
SKU: 1762774
Price: 15.12000 USD
Availability: InStock

new

1762774

Manufacturer part number:1762774

Manufacturer:Phoenix Contact

Description:1762774 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1762774 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	350.000009g
Packaging	Bulk
Published	2008
Series	COMBICON MDSTB
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	20
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	22mm
Insulation Height	1.122 28.50mm
Reach Compliance Code	unknown
Current Rating	10A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	10A
Number of Levels	2
Current	15A
Number of Decks	1
Voltage - IEC	630V
Positions Per Level	10
Number of Ways	10
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	32mm
Length	52mm
Width	51.56mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1762774 Product Details

1762774 Overview

The product comes in a package of Plug.Through Hole is the mounting type of the device.To package the product, a Bulk case is used.This product is from the COMBICON MDSTB Series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.Through Hole mounts the part.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
