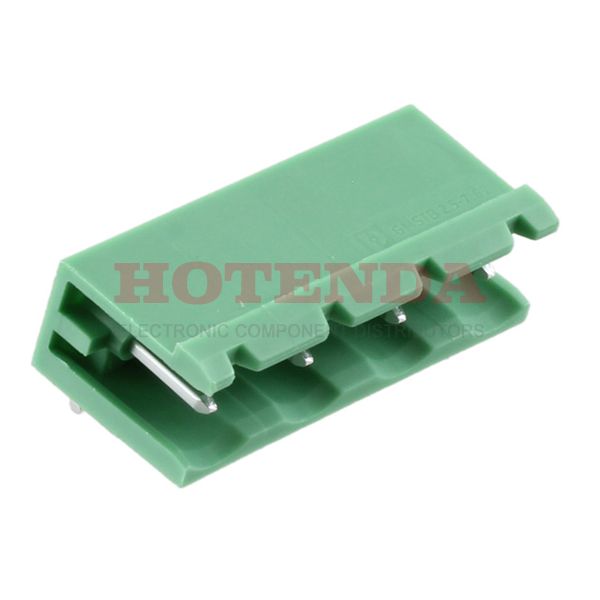

Name: 1766149
Brand: Phoenix Contact
SKU: 1766149
Price: 2.63000 USD
Availability: InStock

new-10%

1766149

Manufacturer part number:1766149

Manufacturer:Phoenix Contact

Description:1766149 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1766149 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	173.999989g
Packaging	Bulk
Published	2010
Series	COMBICON GMSTB
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	400V
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1766149 Product Details

1766149 Overview

This device's mounting type is Through Hole.To package the product, we use a Bulk case.This product is part of the COMBICON GMSTB Series.Mounted by Through Hole.The benefts of this part are similar to those of other Header, Male Pins, Shrouded (2 Side) products.
