Name: 1766330
Brand: Phoenix Contact
SKU: 1766330
Price: 7.92000 USD
Availability: InStock

new-10%

1766330

Manufacturer part number:1766330

Manufacturer:Phoenix Contact

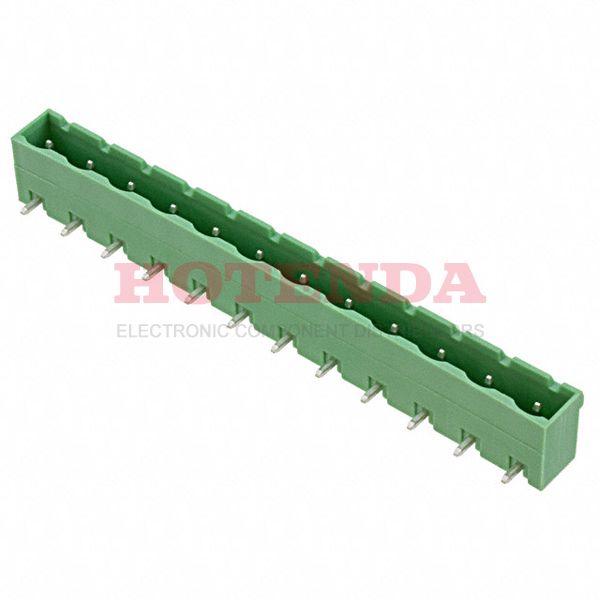

Description:Bulk 0.300 7.62mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON GMSTBA Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1766330 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	174.99999g
Packaging	Bulk
Series	COMBICON GMSTBA
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	12
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	12
Height	18.5mm
Length	91.44mm
Width	91.44mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1766330 Product Details

1766330 Overview

Currently, it is packaged in Plug.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the COMBICON GMSTBA Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.Through Hole represents the mounting point for the part.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
