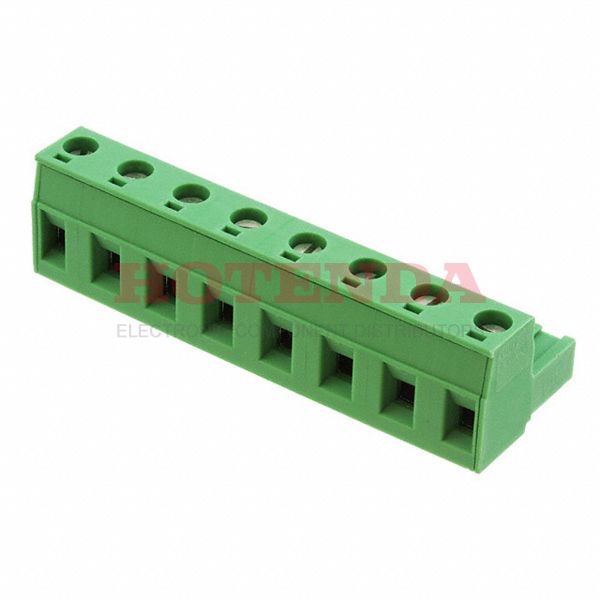

Name: 1767067
Brand: Phoenix Contact
SKU: 1767067
Price: 16.21000 USD
Availability: InStock

new

1767067

Manufacturer part number:1767067

Manufacturer:Phoenix Contact

Description:1767067 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1767067 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	166.000009g
Packaging	Bulk
Published	2003
Series	COMBICON GMSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	400V
Additional Feature	PA, 94V-2
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	15mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	8
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	58.96mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1767067 Product Details

1767067 Overview

The packaging contains Screw, Socket.Free Hanging (In-Line) is the mount type.To package the product, a Bulk case is used.Among the products in the COMBICON GMSTB Series, it is one of the most popular.Additionally, there are features like PA, 94V-2, just to name a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Mounted by Cable, Free Hanging, Plug-In.As with other Plug, Female Sockets products, this part has a lot of benefits.
