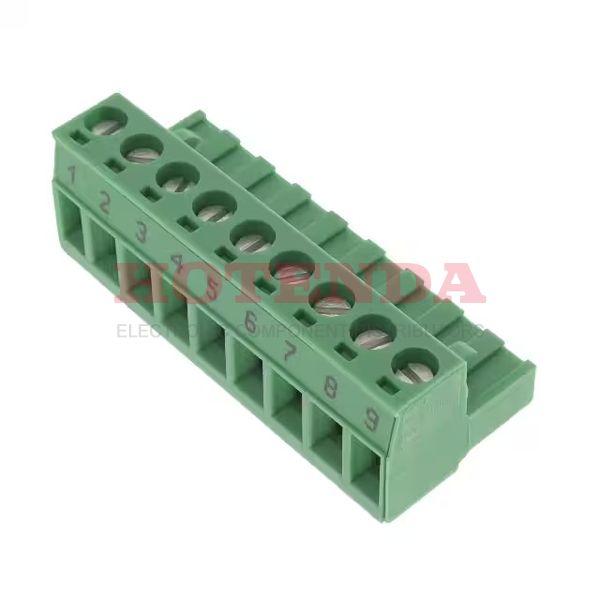

Name: 1767627
Brand: Phoenix Contact
SKU: 1767627
Price: 9.99000 USD
Availability: InStock

new

1767627

Manufacturer part number:1767627

Manufacturer:Phoenix Contact

Description:1767627 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1767627 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	9
Color	Green
Voltage - Rated	250V
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	9
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	9
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Width	40mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1767627 Product Details

1767627 Overview

The product comes in a package of Screw.This device has a mounting type of Free Hanging (In-Line).The product is packaged in a Bulk case.The product belongs to the COMBICON MSTB Series.A number of features make it more powerful because of its Positions Stamped, Retention Latches (Non-Wire Side) feature.By Free Hanging, Plug-In it's mounted.There are a lot of similarities between this part and other Plug, Female Sockets products.
