Name: 1772647
Brand: Phoenix Contact
SKU: 1772647
Price: 10.06000 USD
Availability: InStock

new

1772647

Manufacturer part number:1772647

Manufacturer:Phoenix Contact

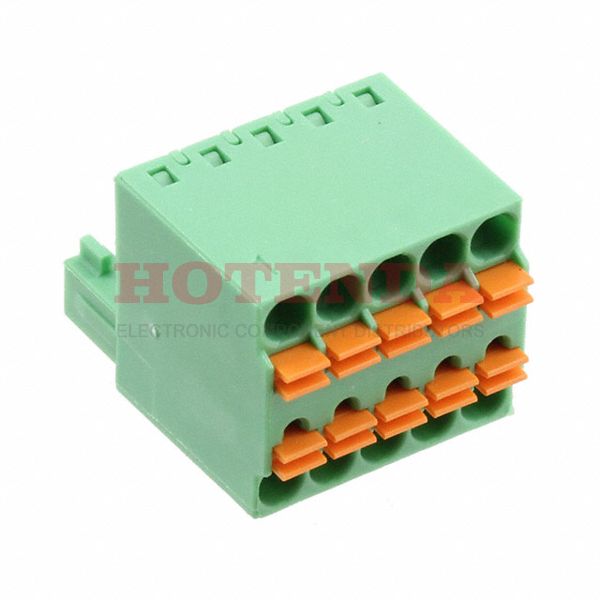

Description:Bulk 0.138 3.50mm Green 1 (Mate), 2 (Input) Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON TFMC Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1772647 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON TFMC
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Number of Rows	2
Gender	Female
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, PA
Pitch	0.138 3.50mm
Insulation Height	0.902 22.90mm
Current Rating	8A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1 (Mate), 2 (Input)
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	320V
Positions Per Level	5 (Mate), 10 (Input)
Number of Ways	5
Safety Approval	CB; CUL; EAC; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Fastening Method	SPRING LOADED
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1772647 Product Details

1772647 Overview

Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the COMBICON TFMC Series of products.Additionally, there are other features, such as STANDARD: UL 94V-0, PA.Free Hanging mounts the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
