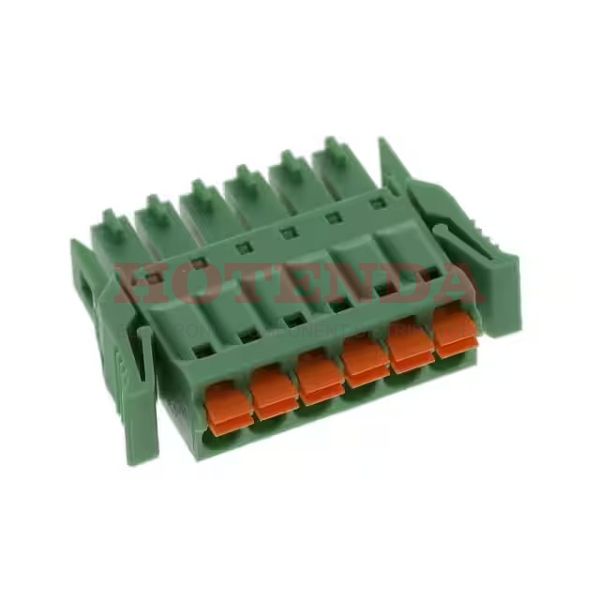

1952063

1952063

1952063

Phoenix Contact

1952063 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1952063 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 3.639994g
PackagingBulk
Published 2003
Series COMBICON FMC
Feature Latch Lock
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional FeaturePA, UL 94V-0
Pitch 0.138 3.50mm
Depth 7.8mm
Insulation Height 0.307 7.80mm
Current Rating8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 6
Fastening Method SPRING LOADED
Height 7.8mm
Length 22.9mm
Width 31.1mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:721 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$9.783492$9.783492
10$9.229709$92.29709
100$8.707274$870.7274
500$8.214409$4107.2045
1000$7.749442$7749.442

1952063 Product Details

1952063 Overview


Socket packaging is included.This device is mounted in the Free Hanging (In-Line) position.To package the product, we use a Bulk case.COMBICON FMC Series product.Furthermore, there are other features such as PA, UL 94V-0, to name a few.Its Latch Lock feature renders it more powerful in many ways.By Free Hanging it's mounted.This part shares lots of benefits with other Plug, Female Sockets products.

1952063 Features


COMBICON FMC series

1952063 Applications


There are a lot of Phoenix Contact 1952063 Terminal Blocks applications.

  • All Electrical Machinery
  • LED municipal outdoor and street lighting
  • Instrumentation
  • Refrigeration control
  • Data Technology
  • Transportation
  • Control panels
  • Medical technology
  • Industrial Automation
  • Communication
