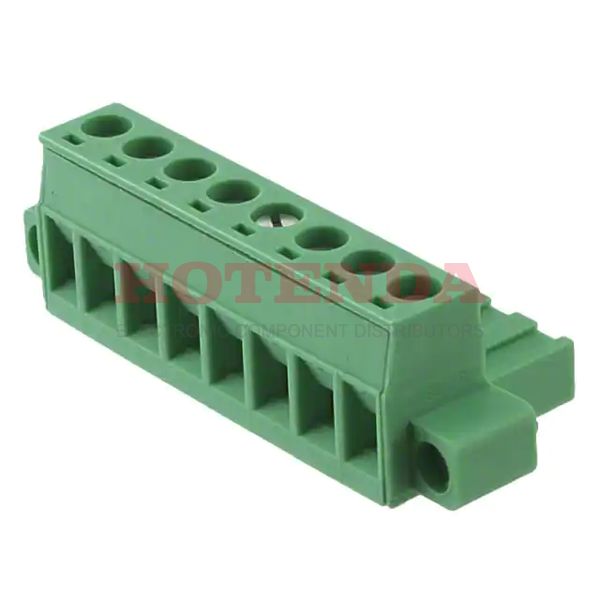

Name: 1778043
Brand: Phoenix Contact
SKU: 1778043
Price: 10.58000 USD
Availability: InStock

new

1778043

Manufacturer part number:1778043

Manufacturer:Phoenix Contact

Description:1778043 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1778043 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper
Mount	Free Hanging, Panel, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	128.999997g
Packaging	Bulk
Published	2017
Series	COMBICON MSTB
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	UL 94V-0, PA, SAFETY APPROVAL: RS; UL; VDE
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	8
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	8
Safety Approval	CB; CCA; CSA; CUL; EAC; GL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	50.65mm
Width	18.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1778043 Product Details

1778043 Overview

Packaging for this item is Screw, Socket.The device's mounting type is Free Hanging (In-Line).Packaging the product involves using a Bulk case.It's from the COMBICON MSTB Series.Among other features are UL 94V-0, PA, SAFETY APPROVAL: RS; UL; VDE, to name only a few.A number of aspects of its Mating Flange feature make it more powerful.Mounted by Free Hanging, Panel, Plug-In.There should be no voltage above 0 on the supply line for this chip.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
