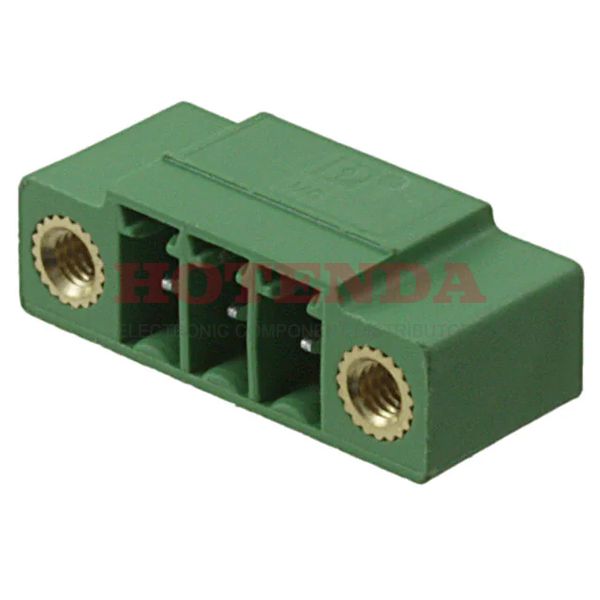

Name: 1843800
Brand: Phoenix Contact
SKU: 1843800
Price: 3.59000 USD
Availability: InStock

new-10%

1843800

Manufacturer part number:1843800

Manufacturer:Phoenix Contact

Description:1843800 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843800 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Additional Feature	PBT, UL 94V-0
Pitch	0.138 3.50mm
Orientation	Right Angle
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	3
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	3
Height	10.65mm
Length	9.2mm
Width	20.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843800 Product Details

1843800 Overview

The packaging is Plug.Through Hole is the mounting type of the device.Packaged in a Bulk case.This is from the COMBICON MC Series.There are also features like PBT, UL 94V-0, just to name a few.A number of benefits can be derived from the Mating and Mounting Flange feature of this application.Through Hole represents the mounting point for the part.There are a lot of advantages this part has in common with other Header, Male Pins, Shrouded (4 Side) parts.
