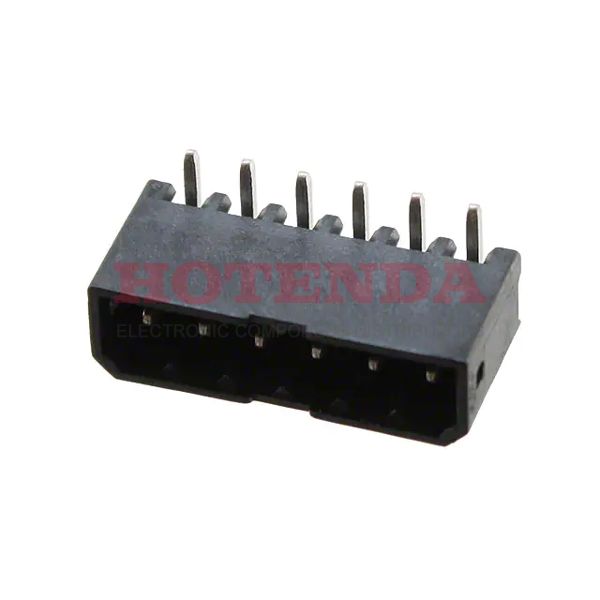

Name: 1778667
Brand: Phoenix Contact
SKU: 1778667
Price: 1.00000 USD
Availability: InStock

new-10%

1778667

Manufacturer part number:1778667

Manufacturer:Phoenix Contact

Description:1778667 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1778667 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Tape & Reel (TR)
Published	2011
Series	COMBICON PTSM
Feature	Pick and Place Cap
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Voltage - Rated	160V
Pitch	0.098 2.50mm
Orientation	Right Angle
Depth	7.5mm
Insulation Height	0.197 5.00mm
Reach Compliance Code	unknown
Current Rating	6A
Termination Style	Solder
Approval Agency	UL
Voltage	150V
Contact Tail Length	0.083 2.10mm
Max Current Rating	6A
Number of Levels	1
Current	6A
Number of Poles	6
Header Orientation	90°, Right Angle
Height	5.1mm
Length	7.5mm
Width	16.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1778667 Product Details

1778667 Overview

Packaging is Plug.A Through Hole mounting type is specified for the device.It's packaged in a Tape & Reel (TR) case.COMBICON PTSM Series product.There are a number of advantages to its Pick and Place Cap feature.In this case, Through Hole mounts the part.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
