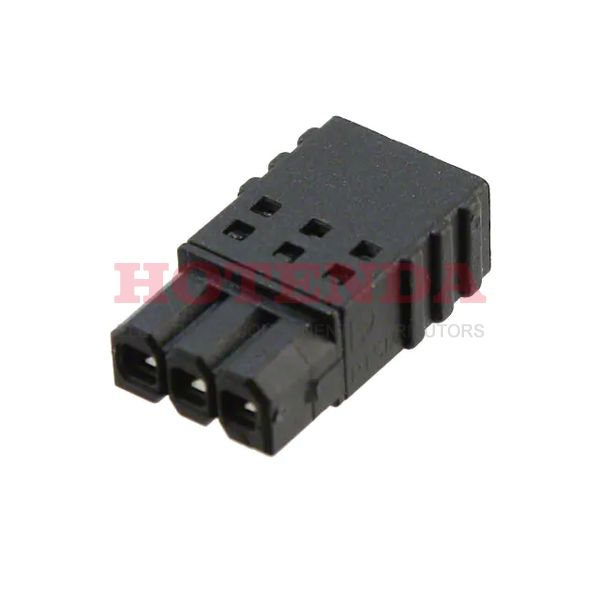

Name: 1778845
Brand: Phoenix Contact
SKU: 1778845
Price: 1.33000 USD
Availability: InStock

new-10%

1778845

Manufacturer part number:1778845

Manufacturer:Phoenix Contact

Description:1778845 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1778845 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON PTSM
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	3
Color	Black
Gender	Male
Voltage - Rated	160V
Pitch	0.098 2.50mm
Orientation	Straight
Insulation Height	0.197 5.00mm
Current Rating	6A
Termination Style	Screwless - Spring Cage, Tension Clamp
Approval Agency	UL
Voltage	150V
Max Current Rating	6A
Number of Levels	1
Current	5A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Number of Poles	3
Wire Gauge or Range - AWG	20-26 AWG
Voltage - IEC	320V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-0.5mm2
Wire Strip Length	6mm
Height	5mm
Length	15mm
Width	8.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1778845 Product Details

1778845 Overview

You get it in Socket packaging.There is a mounting type of Free Hanging (In-Line) for this device.In order to package the product, a Bulk case is used.This product is in the COMBICON PTSM Series.In this case, Cable, Free Hanging mounts the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
