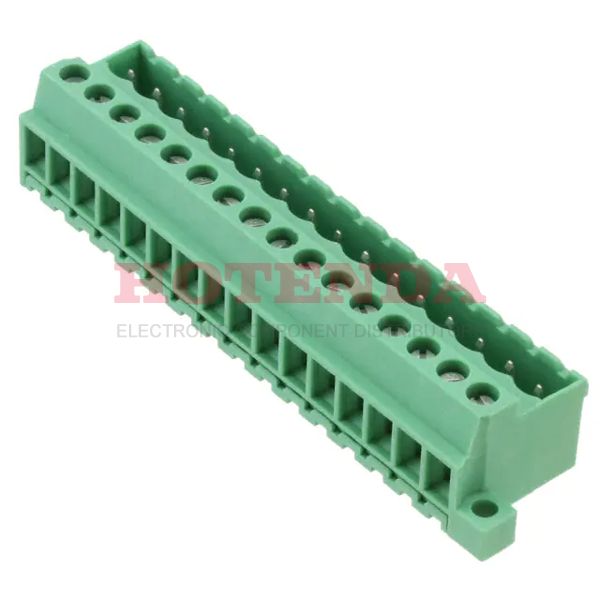

Name: 1788677
Brand: Phoenix Contact
SKU: 1788677
Price: 32.58000 USD
Availability: InStock

new

1788677

Manufacturer part number:1788677

Manufacturer:Phoenix Contact

Description:1788677 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1788677 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable
Mounting Type	Board Mount
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	206.999996g
Packaging	Bulk
Published	2012
Series	COMBICON MVSTBU
Feature	Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Receptacle, Male Pins
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	20.4mm
Insulation Height	0.681 17.30mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	16
Safety Approval	CB; CSA; CUL; EAC; UL; VDE
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	16
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	20.4mm
Length	92.6mm
Width	17.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1788677 Product Details

1788677 Overview

Plug packaging is included.Board Mount is the mounting type.In order to package the product, a Bulk case is used.Specifically, it is one of the products in the COMBICON MVSTBU Series.Among other features are STANDARD: UL 94V-0, PA, to name only a few.Its Mounting Flange feature renders it more powerful in many ways.Cable represents the mounting point for the part.Compared to other Receptacle, Male Pins products, this part has a lot of benefits to offer.
