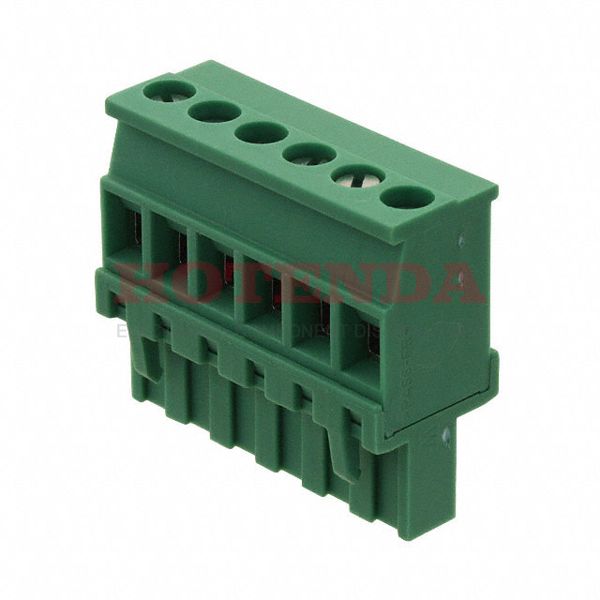

Name: 1792058
Brand: Phoenix Contact
SKU: 1792058
Price: 7.34000 USD
Availability: InStock

new

1792058

Manufacturer part number:1792058

Manufacturer:Phoenix Contact

Description:1792058 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1792058 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.59982kg
Packaging	Bulk
Published	2005
Series	COMBICON MVSTBR
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	6
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	26mm
Length	30mm
Width	12.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1792058 Product Details

1792058 Overview

This product is packaged in a Screw, Socket cartonThere is a mounting type of Free Hanging (In-Line) for this device.A Bulk case is used to package the product.This product is part of the COMBICON MVSTBR Series.There are also other features, like PA, 94V-0, to name a few.A number of advantages can be derived from its Retention Latches (Wire Side) feature.By Cable, Free Hanging, the part is mounted.A supply voltage of 250V is recommended for this chip.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
