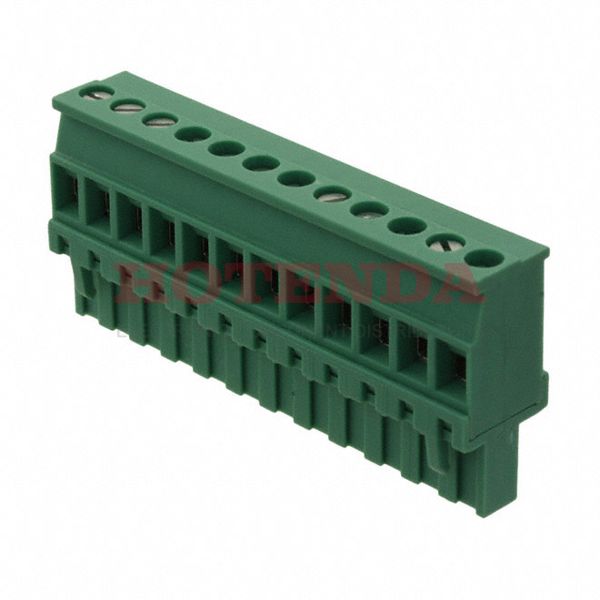

Name: 1792346
Brand: Phoenix Contact
SKU: 1792346
Price: 14.66000 USD
Availability: InStock

new

1792346

Manufacturer part number:1792346

Manufacturer:Phoenix Contact

Description:1792346 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1792346 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	132.000001g
Packaging	Bulk
Published	2001
Series	COMBICON MVSTBR
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Gender	Male
Voltage - Rated	250V
Additional Feature	POLYAMIDE, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	250V
Approval Agency	CSA, UL, VDE, cULus
Lead Pitch	5.08mm
Number of Contacts	12
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	24 AWG
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL; CSA
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	26mm
Length	60.96mm
Width	61.96mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1792346 Product Details

1792346 Overview

Packaging is in the form of Screw, Socket.The mounting type of the device is Free Hanging (In-Line).The product is packaged in a Bulk case.This is from the COMBICON MVSTBR Series.Further, there are features such as POLYAMIDE, 94V-0, to name only a few.In many ways, its Retention Latches (Wire Side) feature makes it more powerful.Cable, Free Hanging mounts the part.This chip's supply voltage should not exceed 250V.
