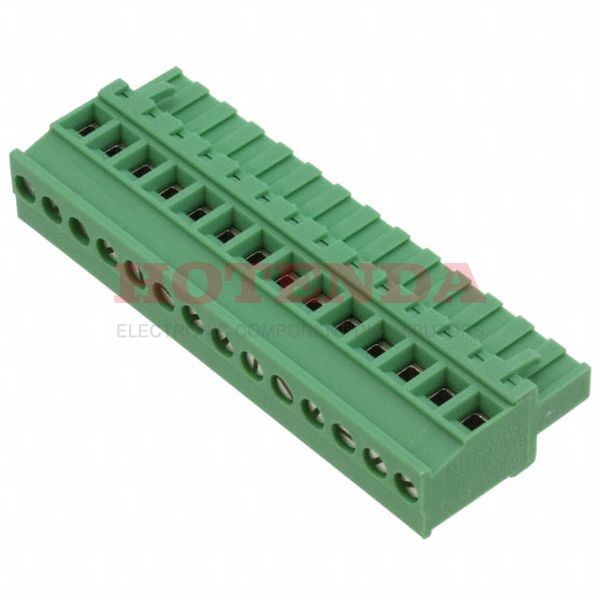

1792362

1792362

1792362

Phoenix Contact

1792362 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1792362 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 132.000001g
PackagingBulk
Published 2003
Series COMBICON MVSTBR
Feature Retention Latches (Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Voltage - Rated 250V
Additional FeaturePOLYAMIDE, 94V-0
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Depth 12.6mm
Insulation Height 1.024 26.01mm
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 14
Voltage 300V
Max Supply Voltage250V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 14
Safety Approval UL; CSA
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Height 26mm
Length 71.12mm
Width 72.12mm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:413 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.102059$3.102059
10$2.926471$29.26471
100$2.760821$276.0821
500$2.604549$1302.2745
1000$2.457121$2457.121

1792362 Product Details

1792362 Overview


This product is packaged in a Screw, Socket carton.Free Hanging (In-Line) is the mounting type of the device.We pack the product in a Bulk case.COMBICON MVSTBR Series product.Among other features are POLYAMIDE, 94V-0, to name only a few.Its Retention Latches (Wire Side) feature makes it more powerful in a number of ways.It's mounted by Cable, Free Hanging.The supply voltage of this chip should not exceed 250V.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

1792362 Features


COMBICON MVSTBR series

1792362 Applications


There are a lot of Phoenix Contact 1792362 Terminal Blocks applications.

  • Transportation
  • LED municipal outdoor and street lighting
  • Electrical substations
  • Industrial Automation
  • Blowers
  • Anywhere power is distributed
  • Refrigeration control
  • Automotive Electronics
  • Datacom
  • Measuring & Control Technology
