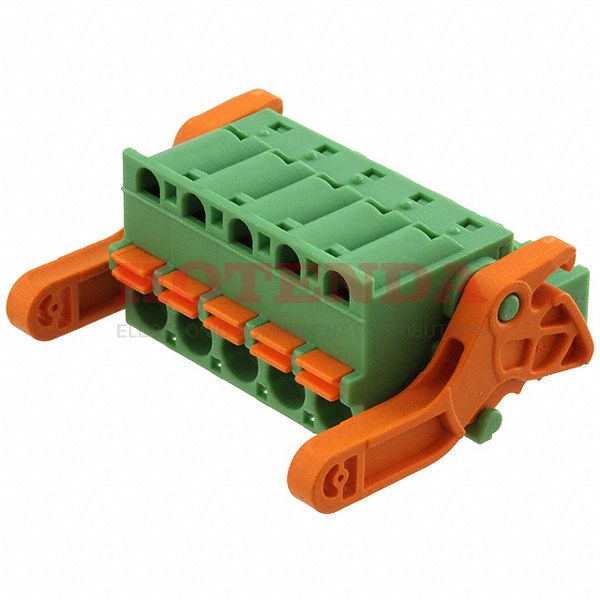

Name: 1792546
Brand: Phoenix Contact
SKU: 1792546
Price: 7.23000 USD
Availability: InStock

new

1792546

Manufacturer part number:1792546

Manufacturer:Phoenix Contact

Description:1792546 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1792546 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2012
Series	COMBICON FKC
Feature	Ejector Latches, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Approval Agency	cULus
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1792546 Product Details

1792546 Overview

Mounting type Free Hanging (In-Line) is assigned to the device.Packaging the product involves using a Bulk case.The product is part of the COMBICON FKC Series.It is more powerful in many ways due to its Ejector Latches, Retention Latches (Non-Wire Side) feature.This part is mounted by Free Hanging. This part shares lots of benefits with other Plug, Female Sockets products.
