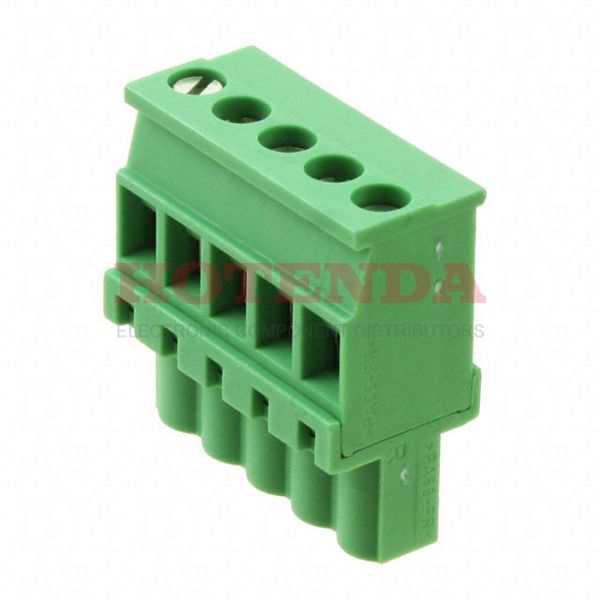

Name: 1792553
Brand: Phoenix Contact
SKU: 1792553
Price: 6.42000 USD
Availability: InStock

new-10%

1792553

Manufacturer part number:1792553

Manufacturer:Phoenix Contact

Description:1792553 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1792553 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.59982kg
Packaging	Bulk
Published	2010
Series	COMBICON MVSTBW
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Orientation	Straight
Depth	12.6mm
Insulation Height	0.496 12.60mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Number of Contacts	5
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Height	25mm
Length	25mm
Width	26mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1792553 Product Details

1792553 Overview

The packaging is Socket.The device's mounting type is Free Hanging (In-Line).A Bulk case is used to package the product.This product is in the COMBICON MVSTBW Series.To name a few, there is also PA, 94V-0.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.It is mounted by Cable, Free Hanging.It is recommended that this chip's supply voltage does not exceed 250V.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
