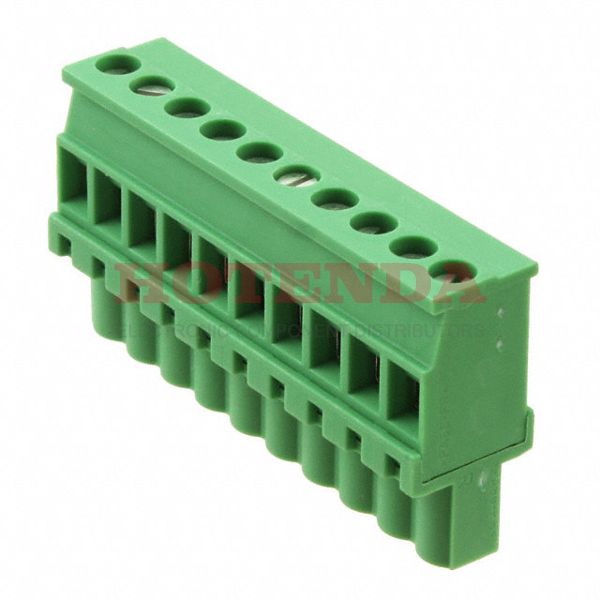

Name: 1792605
Brand: Phoenix Contact
SKU: 1792605
Price: 12.24000 USD
Availability: InStock

new

1792605

Manufacturer part number:1792605

Manufacturer:Phoenix Contact

Description:1792605 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1792605 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	800.136941g
Packaging	Bulk
Published	2003
Series	COMBICON MVSTBW
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	26mm
Insulation Height	0.496 12.60mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, UL, VDE
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	10
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	26mm
Length	7mm
Width	12.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1792605 Product Details

1792605 Overview

Packaging for this item is Socket.Mounting type Free Hanging (In-Line) is selected for the device.A Bulk case is used to package the product.Product number COMBICON MVSTBW belongs to the COMBICON MVSTBW Series.There are also features like PA, 94V-0, just to name a few.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.Part Cable, Free Hanging is mounted to the part.It shares many benefts with other Plug, Female Sockets products.
