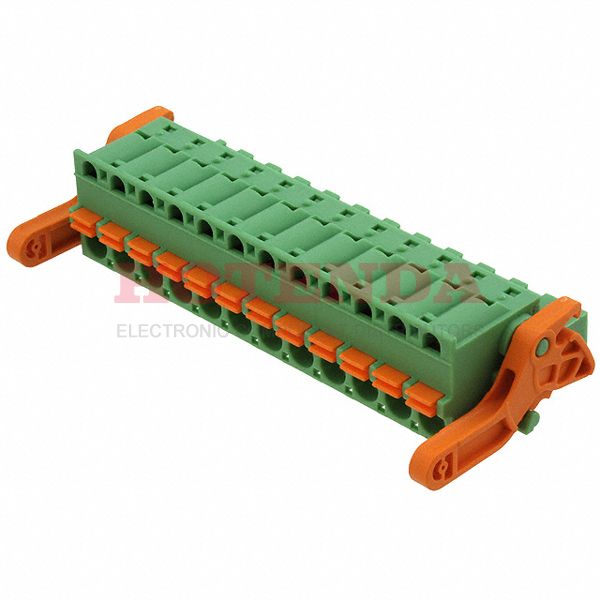

Name: 1792614
Brand: Phoenix Contact
SKU: 1792614
Price: 15.08000 USD
Availability: InStock

new

1792614

Manufacturer part number:1792614

Manufacturer:Phoenix Contact

Description:1792614 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1792614 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2012
Series	COMBICON FKC
Feature	Ejector Latches, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	12
Color	Green
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Approval Agency	cULus
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1792614 Product Details

1792614 Overview

Free Hanging (In-Line) is the mount type.Packaged in a Bulk case.This product is from the COMBICON FKC Series.As a result of its Ejector Latches, Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.Mounting of the part is based on Free Hanging.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
