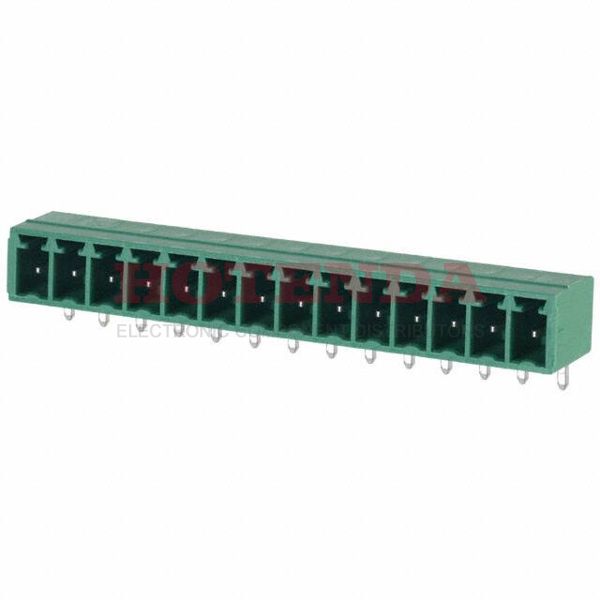

Name: 1803390
Brand: Phoenix Contact
SKU: 1803390
Price: 5.98000 USD
Availability: InStock

new-10%

1803390

Manufacturer part number:1803390

Manufacturer:Phoenix Contact

Description:1803390 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803390 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2010
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	14
Number of Decks	1
Voltage - IEC	250V
Number of Ways	14
Safety Approval	CB; CSA; CUL; EAC; UL; VDE
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	7.4mm
Length	54.73mm
Width	9.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803390 Product Details

1803390 Overview

The product is packaged in Plug.This device is mounted in the Through Hole position.A Bulk case is used for packaging.A product of the COMBICON MC Series, it belongs to the range of products of that series.By Through Hole, the part is mounted.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
