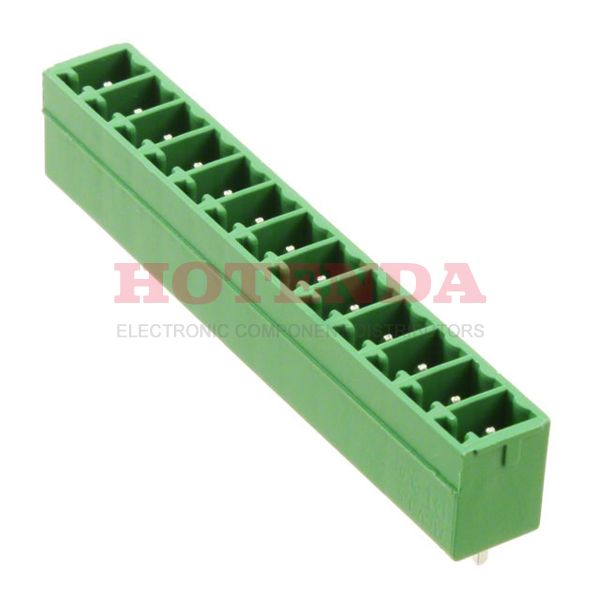

Name: 1803536
Brand: Phoenix Contact
SKU: 1803536
Price: 5.60000 USD
Availability: InStock

new-10%

1803536

Manufacturer part number:1803536

Manufacturer:Phoenix Contact

Description:1803536 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803536 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2003
Series	COMBICON MCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Voltage - Rated DC	640mV
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	13
Number of Decks	1
Voltage - IEC	250V
Number of Ways	13
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	12.6mm
Length	50.92mm
Width	7.25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803536 Product Details

1803536 Overview

Plug packaging is included.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MCV Series.There's a Through Hole on the part.As with other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits.
