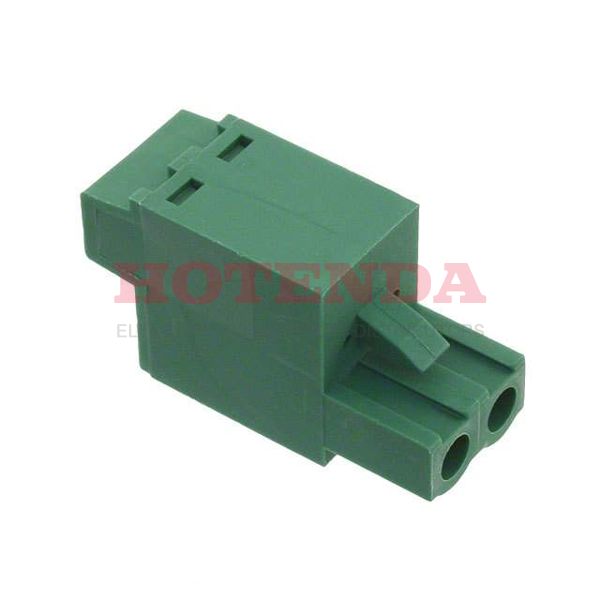

Name: 1986484-2
Brand: TE Connectivity AMP Connectors
SKU: 1986484-2
Price: 2.91000 USD
Availability: InStock

new-10%

1986484-2

Manufacturer part number:1986484-2

Manufacturer:TE Connectivity AMP Connectors

Description:1986484-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:1986484-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2010
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Plug
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	0.587 14.91mm
Current Rating	16A
Termination Style	Screw - Pressure Clip
Voltage - Rated AC	300V
Approval Agency	UL
Number of Contacts	2
Housing Color	Green
Voltage	300V
ELV	Compliant
Number of Circuits	2
Max Current Rating	16A
Number of Levels	1
Current	16A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	24 AWG
Number of Poles	2
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	14-24 AWG
Current - UL	16A
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	2
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2mm2
Wire Strip Length	10mm
Number of Positions Per Level	2
Length	10mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1986484-2 Product Details

1986484-2 Overview

It comes in Plug packaging.Its mounting type is Free Hanging (In-Line).An orange Bulk case is used to package the product.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.It's mounted by Cable, Free Hanging.This part has 2 circuits.This device runs at -40°C~105°C operating temperature.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
