Name: 1803604
Brand: Phoenix Contact
SKU: 1803604
Price: 6.61000 USD
Availability: InStock

new-10%

1803604

Manufacturer part number:1803604

Manufacturer:Phoenix Contact

Description:1803604 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803604 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	97.999992g
Packaging	Bulk
Published	2001
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
Additional Feature	PA, 94V-0
Voltage - Rated DC	160V
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	16.1mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CSA, UL, VDE
Number of Contacts	5
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Wire/Cable Gauge	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	11.1mm
Length	19.84mm
Width	19.84mm
Thickness	15.24mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

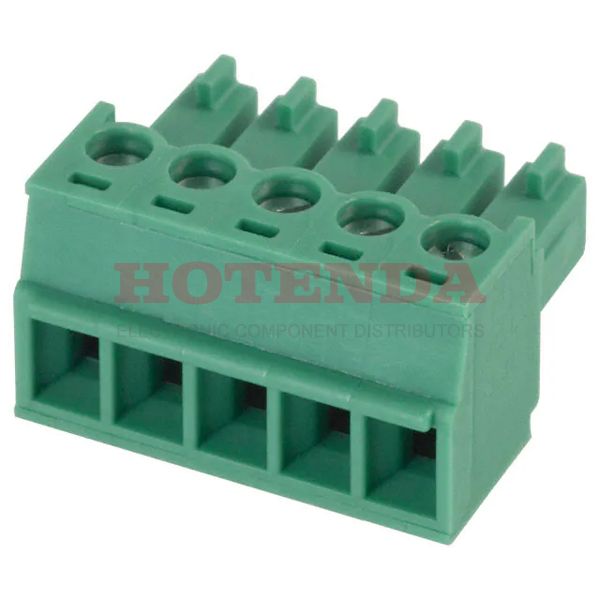

1803604 Product Details

1803604 Overview

Screw, Socket packaging is included.Mounting type is Free Hanging (In-Line).To package the product, a Bulk case is used.It belongs to the COMBICON MC Series of products.Also, there's PA, 94V-0, to name a few.You've got Cable, Free Hanging mounted on the part.This chip should not be supplied with a voltage greater than 160V.Many Plug, Female Sockets products share the same benefits as this part.
