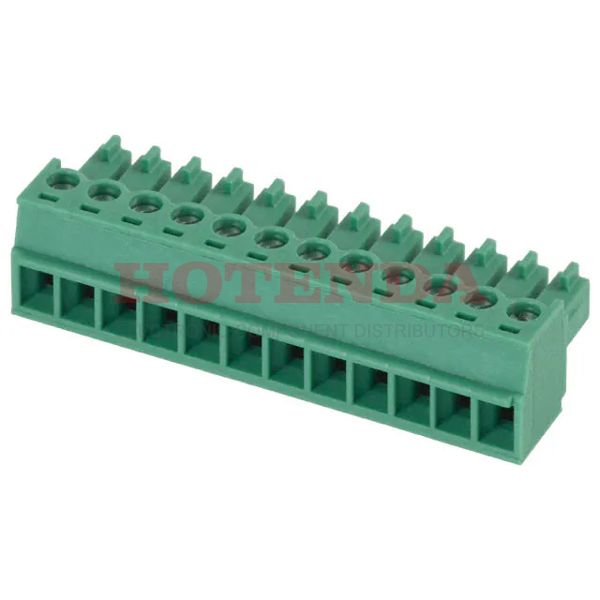

Name: 1803675
Brand: Phoenix Contact
SKU: 1803675
Price: 14.62000 USD
Availability: InStock

new

1803675

Manufacturer part number:1803675

Manufacturer:Phoenix Contact

Description:1803675 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803675 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	97.999992g
Packaging	Bulk
Published	2001
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket, Terminal Block
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Voltage - Rated DC	160V
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	16.1mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	12
Contact Gender	Female
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	16 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Test Voltage	2.5kV
Height	16.1mm
Length	46.51mm
Width	46.51mm
Thickness	41.91mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803675 Product Details

1803675 Overview

This product is packaged in a Screw, Socket, Terminal Block cartonMounting type Free Hanging (In-Line) is assigned to the device.To package the product, we use a Bulk case.Specifically, it is one of the products in the COMBICON MC Series.Additionally, there are other features, such as PA, 94V-0.There is a mounting hole at Cable, Free Hanging.It is recommended that the supply voltage of this chip not exceed 160V.Other Plug, Female Sockets products benefit from this part as well.
