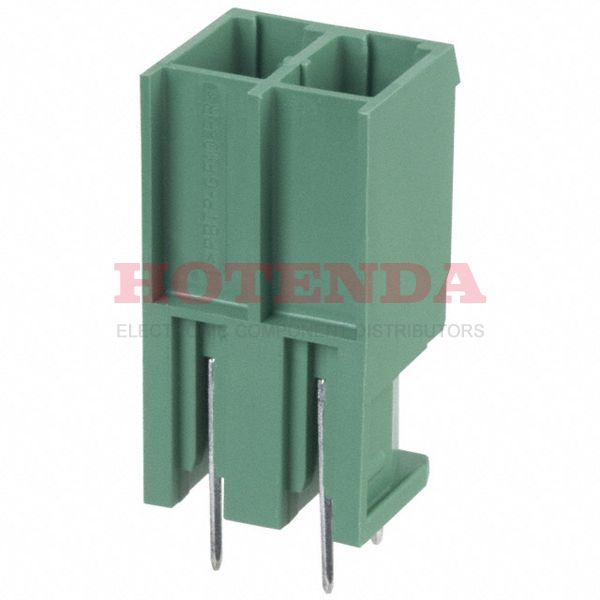

Name: 1804687
Brand: Phoenix Contact
SKU: 1804687
Price: 3.84000 USD
Availability: InStock

new-10%

1804687

Manufacturer part number:1804687

Manufacturer:Phoenix Contact

Description:1804687 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1804687 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	5.010013g
Packaging	Bulk
Published	1998
Series	COMBICON PCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Straight
Depth	14.3mm
Insulation Height	1.142 29.00mm
Current Rating	20A
Termination Style	Solder
Voltage - Rated AC	400V
Approval Agency	CSA, UL
Lead Pitch	7.62mm
Voltage	300V
Contact Tail Length	0.197 5.00mm
Max Current Rating	20A
Number of Levels	1
Current	20A
Number of Poles	2
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	630V
Number of Ways	2
Safety Approval	BV; CSA; CUL; DNV; EAC; GL; LR
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	15.22mm
Length	14.3mm
Width	50mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804687 Product Details

1804687 Overview

You get it in Plug packaging.Through Hole indicates that the device is mounted.It's packaged in a Bulk case.The product is a member of the COMBICON PCV Series.Further, there are features such as STANDARD: UL 94V-0, PA, SAFETY APPROVAL: RS; UL, to name only a few.There is a mounting hole at Through Hole.
