Name: 1804755
Brand: Phoenix Contact
SKU: 1804755
Price: 17.07000 USD
Availability: InStock

new

1804755

Manufacturer part number:1804755

Manufacturer:Phoenix Contact

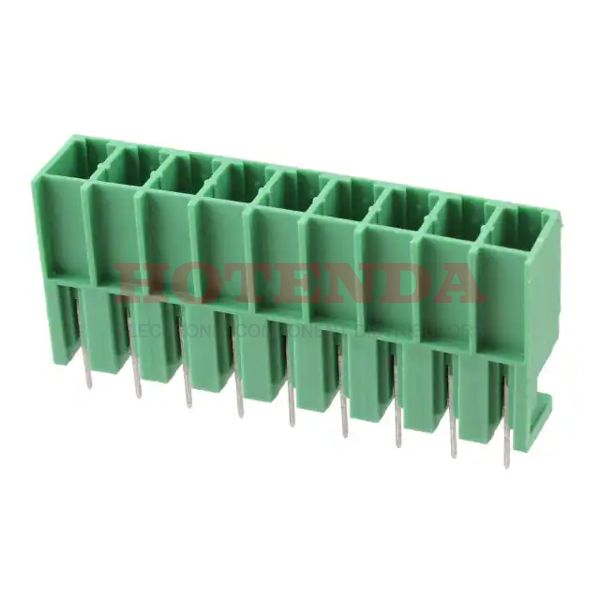

Description:Bulk 0.300 7.62mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON PCV Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1804755 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Silver
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Series	COMBICON PCV
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	9
Color	Green
Number of Rows	1
Voltage - Rated	400V
Pitch	0.300 7.62mm
Depth	4.3mm
Insulation Height	1.142 29.00mm
Current Rating	20A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.197 5.00mm
Number of Levels	1
Current	20A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	630V
Number of Ways	9
Safety Approval	UL
Header Orientation	Vertical
Height	50mm
Length	10.74mm
Width	68.56mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1804755 Product Details

1804755 Overview

It comes in Plug packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON PCV Series of products.The part is mounted by Through Hole.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
