Name: 796867-5
Brand: TE Connectivity AMP Connectors
SKU: 796867-5
Price: 2.66000 USD
Availability: InStock

new-10%

796867-5

Manufacturer part number:796867-5

Manufacturer:TE Connectivity AMP Connectors

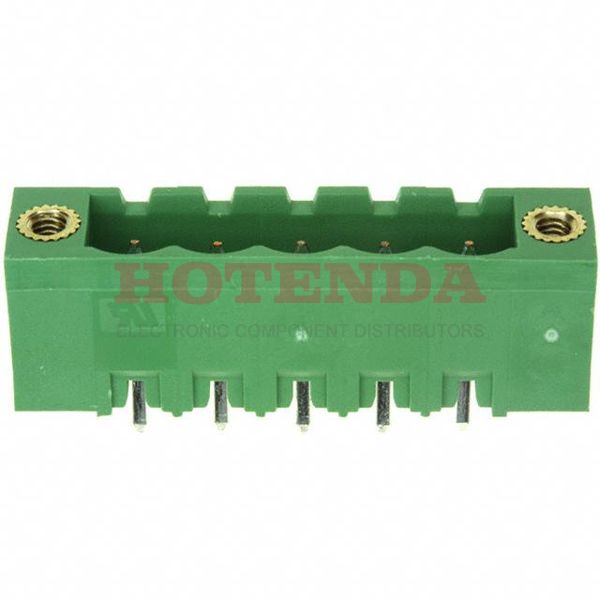

Description:Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Copper Alloy

Case Package:SOT-23

Datasheet:796867-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.35mm
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	15
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	5
Fastening Method	CONNECTOR
Length	35.48mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

796867-5 Product Details

796867-5 Overview

Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Buchanan Series.In many ways, its Mating Flange feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
