Name: 1804784
Brand: Phoenix Contact
SKU: 1804784
Price: 22.80000 USD
Availability: InStock

new

1804784

Manufacturer part number:1804784

Manufacturer:Phoenix Contact

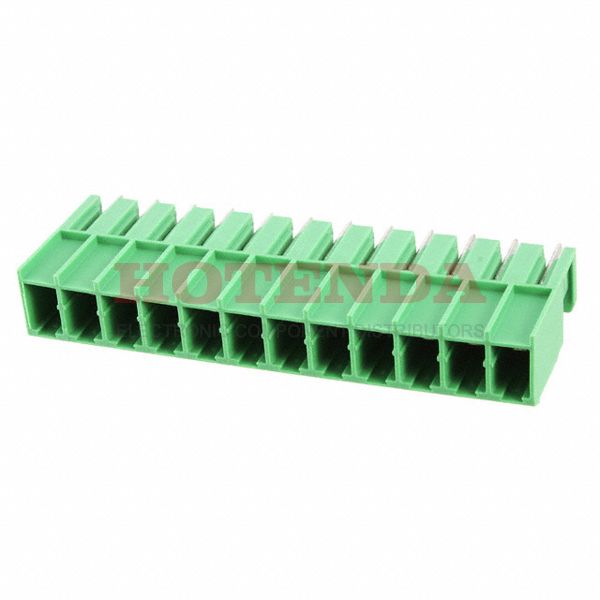

Description:Bulk 0.300 7.62mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON PCV Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1804784 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Silver
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	300.000012g
Packaging	Bulk
Series	COMBICON PCV
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	630V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Straight
Depth	14.3mm
Insulation Height	1.142 29.00mm
Current Rating	20A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.197 5.00mm
Max Current Rating	20A
Number of Levels	1
Current	20A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	630V
Number of Ways	12
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	12
Height	50mm
Length	91.42mm
Width	91.42mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804784 Product Details

1804784 Overview

Packaging for this item is Plug.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON PCV Series.Moreover, there are a number of other features, including PA, 94V-0, to name just a few.Through Hole is used to mount the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
