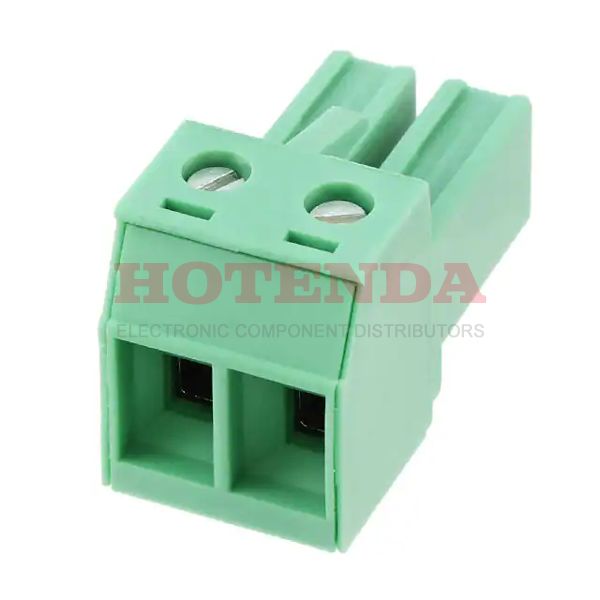

Name: 1804904
Brand: Phoenix Contact
SKU: 1804904
Price: 5.74000 USD
Availability: InStock

new-10%

1804904

Manufacturer part number:1804904

Manufacturer:Phoenix Contact

Description:1804904 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1804904 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	2.100133kg
Packaging	Bulk
Published	2001
Series	COMBICON PC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	400V
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	30.7mm
Insulation Height	0.713 18.10mm
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	2
Voltage	600V
Max Supply Voltage	400V
Max Current Rating	20A
Number of Levels	1
Current	5A
Wire Gauge (Max)	10 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	10-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Wire Strip Length	7mm
Screw Size	M3
Height	18.1mm
Length	15.22mm
Width	30.7mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804904 Product Details

1804904 Overview

A Screw, Socket package is included with it.A Free Hanging (In-Line) mounting type is specified for the device.To package the product, we use a Bulk case.The product belongs to the COMBICON PC Series.Several benefits come from the Retention Latches (Non-Wire Side) feature.Cable, Free Hanging is mounting the part.A supply voltage of 400V is recommended for this chip.There are many benefits that this part shares with other Plug, Female Sockets products as well.
