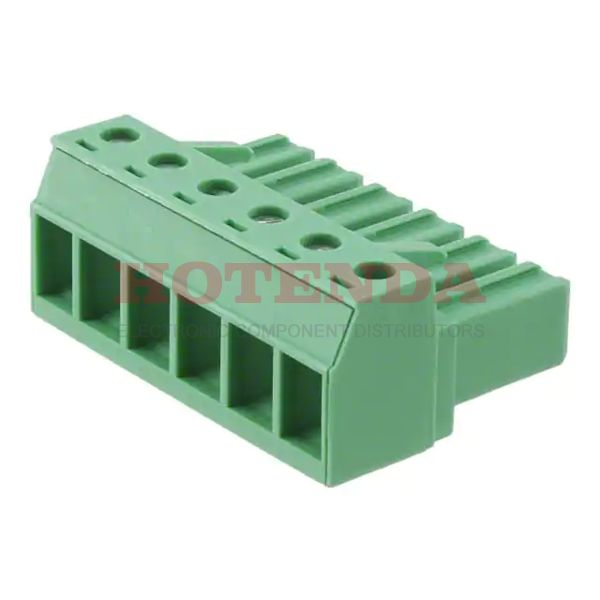

Name: 1804946
Brand: Phoenix Contact
SKU: 1804946
Price: 17.07000 USD
Availability: InStock

new

1804946

Manufacturer part number:1804946

Manufacturer:Phoenix Contact

Description:1804946 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1804946 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Published	2003
Series	COMBICON PC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	30.7mm
Insulation Height	0.713 18.10mm
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, UL
Number of Contacts	6
Voltage	600V
Max Supply Voltage	400V
Max Current Rating	20A
Number of Levels	1
Current	5A
Wire Gauge (Max)	10 AWG
Wire Gauge (Min)	24 AWG
Wire/Cable Gauge	10 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	10-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Screw Size	M3
Wire Cross Section	4 mm2
Height	18.1mm
Length	7mm
Width	45.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804946 Product Details

1804946 Overview

The product comes in a package of Screw, Socket.The device's mounting type is Free Hanging (In-Line).Packaged in a Bulk case.Product number COMBICON PC belongs to the COMBICON PC Series.Additionally, there are other features, such as PA, 94V-0.Its Retention Latches (Non-Wire Side) feature makes it more powerful in a number of ways.There is a Cable, Free Hanging mount on the part.This chip's supply voltage should not exceed 400V.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
