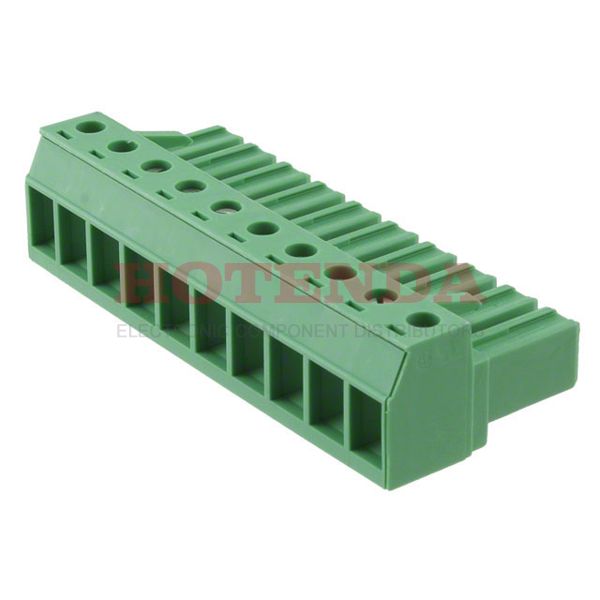

Name: 1804988
Brand: Phoenix Contact
SKU: 1804988
Price: 28.54000 USD
Availability: InStock

new

1804988

Manufacturer part number:1804988

Manufacturer:Phoenix Contact

Description:1804988 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1804988 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Published	2003
Series	COMBICON PC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	10
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Insulation Height	0.713 18.10mm
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	10
Voltage	600V
Max Current Rating	20A
Number of Levels	1
Current	5A
Wire Gauge (Max)	10 AWG
Wire Gauge (Min)	24 AWG
Wire/Cable Gauge	10 AWG
Number of Decks	1
Wire Gauge or Range - AWG	10-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	4 mm2
Height	30.7mm
Length	18.1mm
Width	76.18mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804988 Product Details

1804988 Overview

You'll get Screw, Socket packages.Free Hanging (In-Line) is the mounting type of the device.An orange Bulk case is used to package the product.There is a product in the COMBICON PC Series.Further, there are features such as PA, 94V-0, to name only a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.The part is mounted by Cable, Free Hanging.There are many benefits that this part shares with other Plug, Female Sockets products as well.
