Name: 1808572
Brand: Phoenix Contact
SKU: 1808572
Price: 3.94000 USD
Availability: InStock

new-10%

1808572

Manufacturer part number:1808572

Manufacturer:Phoenix Contact

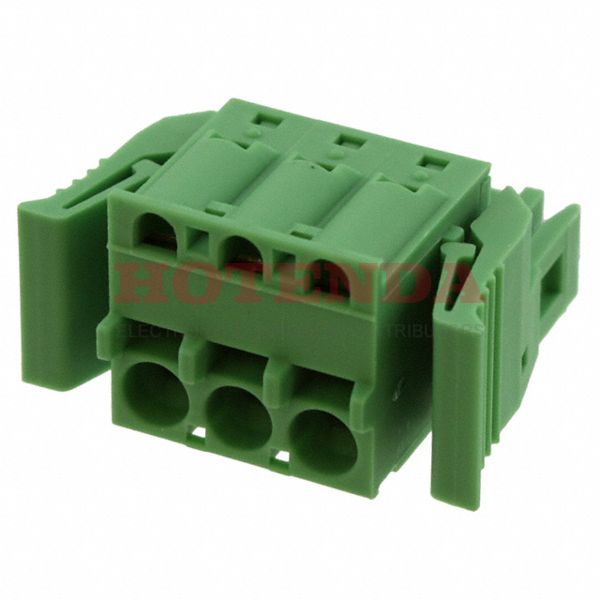

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FKCS Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1808572 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON FKCS
Published	2013
Feature	Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1808572 Product Details

1808572 Overview

Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the COMBICON FKCS Series of products.A number of features make it more powerful because of its Latch Lock, Retention Latches (Non-Wire Side) feature.Free Hanging mounts the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
