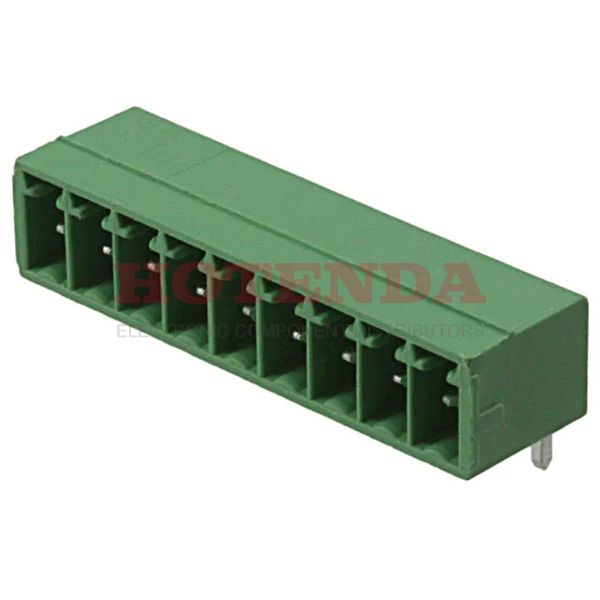

Name: 1844281
Brand: Phoenix Contact
SKU: 1844281
Price: 4.47000 USD
Availability: InStock

new-10%

1844281

Manufacturer part number:1844281

Manufacturer:Phoenix Contact

Description:1844281 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1844281 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2010
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Voltage - Rated DC	640mV
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	9
Number of Decks	1
Voltage - IEC	250V
Number of Ways	9
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	12A
Fastening Method	CONNECTOR
Height	14.5mm
Length	32.9mm
Width	32.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1844281 Product Details

1844281 Overview

Plug packaging is included.This device's mounting type is Through Hole.The product is packaged in a Bulk case.A product of the COMBICON MC Series, it belongs to the range of products of that series.You've got Through Hole mounted on the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
