Name: 1808890
Brand: Phoenix Contact
SKU: 1808890
Price: 4.40000 USD
Availability: InStock

new-10%

1808890

Manufacturer part number:1808890

Manufacturer:Phoenix Contact

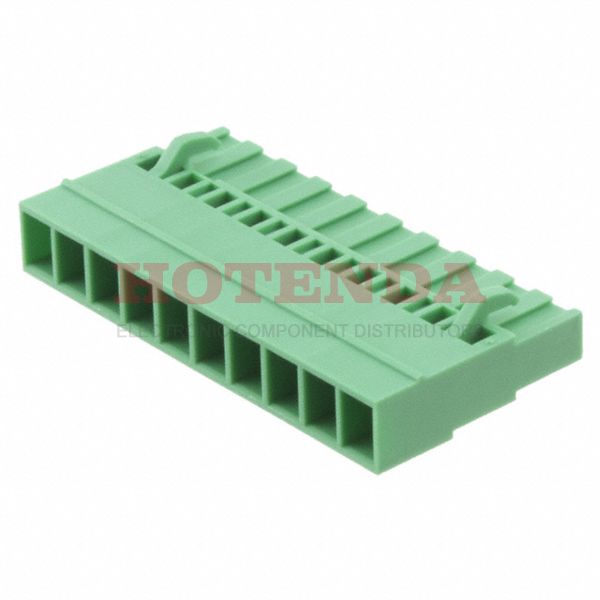

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug Housing for Female Sockets COMBICON MSTBC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1808890 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	5.01401g
Packaging	Bulk
Series	COMBICON MSTBC
Published	2011
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Crimp, Socket
Type	Plug Housing for Female Sockets
Number of Positions	10
Color	Green
Number of Rows	1
Voltage - Rated	320V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.394 10.00mm
Reach Compliance Code	unknown
Current Rating	12A
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-20 AWG
Voltage - IEC	630V
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	12A
Wire Cross Section	2.5 mm2
Height	25mm
Length	10mm
Width	50.76mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1808890 Product Details

1808890 Overview

Packaging for this item is Crimp, Socket.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON MSTBC Series.Moreover, there are a number of other features, including PA, 94V-0, to name just a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Free Hanging is used to mount the part.There are a number of benefits that this part has in common with other Plug Housing for Female Sockets products.
