Name: 1809776
Brand: Phoenix Contact
SKU: 1809776
Price: 3.63000 USD
Availability: InStock

new-10%

1809776

Manufacturer part number:1809776

Manufacturer:Phoenix Contact

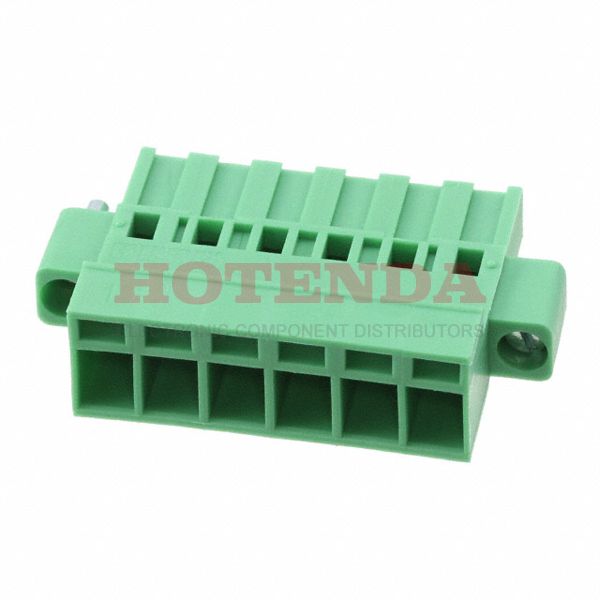

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug Housing for Female Sockets COMBICON MSTBC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1809776 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON MSTBC
Published	2010
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Crimp
Type	Plug Housing for Female Sockets
Number of Positions	6
Color	Green
Number of Rows	1
Voltage - Rated	320V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Insulation Height	0.413 10.49mm
Current Rating	12A
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-20 AWG
Voltage - IEC	630V
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-2.5mm2
Current - IEC	12A
Wire Cross Section	2.5 mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1809776 Product Details

1809776 Overview

This product is packaged in a Crimp box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON MSTBC Series.Furthermore, there are other features such as PA, 94V-0, to name a few.In many ways, Mating Flange makes it more powerful.By Free Hanging, the part is mounted.It is a part that shares many benefits with other products from the Plug Housing for Female Sockets line.
