1858772

1858772

1858772

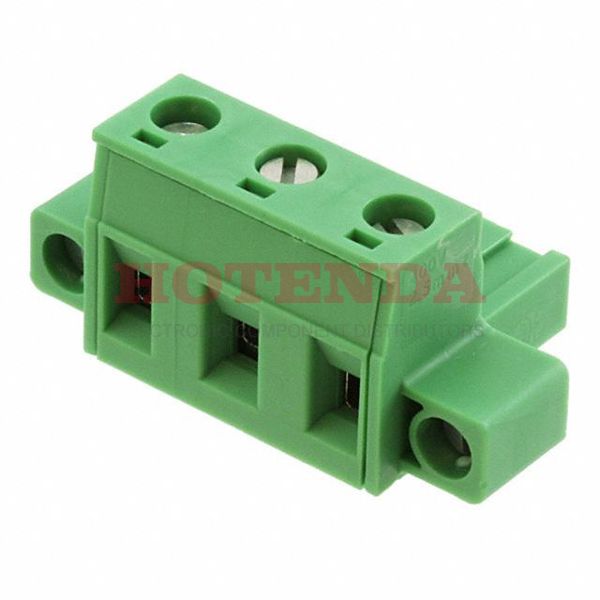

Phoenix Contact

1858772 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1858772 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 167.00001g
PackagingBulk
Published 2011
Series COMBICON GMSTB
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional FeaturePA, 94V-0
Pitch 0.300 7.62mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Height 18.2mm
Length 15mm
Width 33.25mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1035 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$6.068978$6.068978
10$5.725451$57.25451
100$5.401369$540.1369
500$5.095631$2547.8155
1000$4.807199$4807.199

1858772 Product Details

1858772 Overview


The product is packaged in Screw, Socket.Free Hanging (In-Line) is the mounting type for the device.We package the product with a Bulk case.The product is a member of the COMBICON GMSTB Series.In addition, there are other features, such as PA, 94V-0, to mention just a few.In many ways, its Mating Flange feature makes it more powerful.By Free Hanging, the part is mounted.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.

1858772 Features


COMBICON GMSTB series

1858772 Applications


There are a lot of Phoenix Contact 1858772 Terminal Blocks applications.

  • Measuring & Control Technology
  • Refrigeration control
  • Control panels
  • Electrical substations
  • Datacom
  • Transportation
  • Variable speed/frequency drivers
  • Anywhere power is distributed
  • Embedded systems
  • Automotive Electronics
