Name: 1823272
Brand: Phoenix Contact
SKU: 1823272
Price: 4.88000 USD
Availability: InStock

new-10%

1823272

Manufacturer part number:1823272

Manufacturer:Phoenix Contact

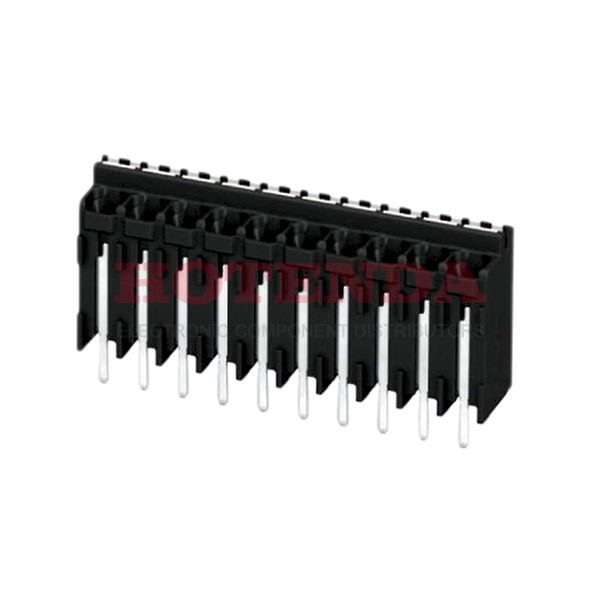

Description:0.138 3.50mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Through Hole Vertical with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPT-THR

Case Package:SOT-23

Datasheet:1823272 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material - Plating	Tin Plated
Packaging	Tape & Reel (TR)
Series	COMBICON SPT-THR
Published	2015
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Color	Black
Number of Rows	1
Additional Feature	STANDARD: UL 94V-0, LCP
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Reach Compliance Code	unknown
Wire Gauge	16-24 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	10
Safety Approval	CUL; EAC; UL
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Leg Spring, Push-In Spring
Number of Positions Per Level	10
Fastening Method	SPRING LOADED
RoHS Status	RoHS Compliant

1823272 Product Details

1823272 Overview

Through Hole is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the COMBICON SPT-THR Series.Among other features are STANDARD: UL 94V-0, LCP, to name only a few.It is mounted by Through Hole.
