1824459

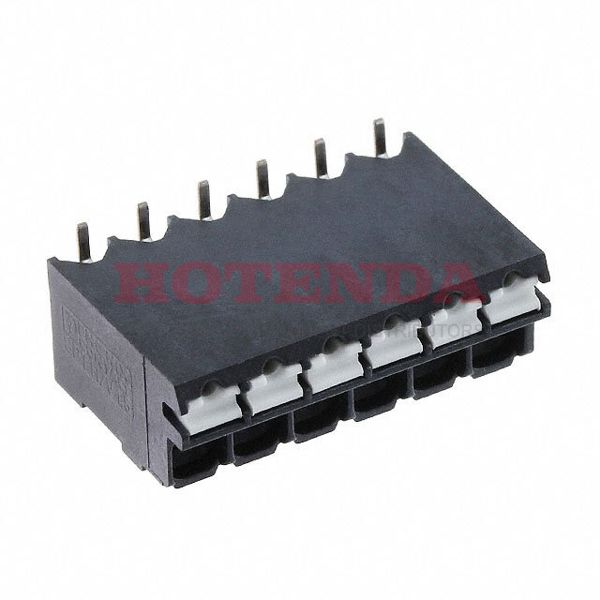

  • 1824459 - 0.200 5.08mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Surface Mount Vertical with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPT-SMD
  • 1824459 - 0.200 5.08mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Surface Mount Vertical with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPT-SMD

1824459

1824459

Phoenix Contact

0.200 5.08mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Surface Mount Vertical with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPT-SMD

SOT-23

1824459 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 9 Weeks
Contact PlatingTin
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Tin Plated
PackagingTape & Reel (TR)
Series COMBICON SPT-SMD
Published 2016
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Black
Pitch 0.200 5.08mm
Reach Compliance Code unknown
Wire Gauge16-24 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Mating Orientation Vertical with Board
Wire TerminationScrewless - Leg Spring, Push-In Spring
Number of Positions Per Level 6
RoHS StatusRoHS Compliant
In-Stock:2067 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.070000$4.07
10$3.839623$38.39623
100$3.622286$362.2286
500$3.417250$1708.625
1000$3.223821$3223.821

1824459 Product Details

1824459 Overview


It's mounted Surface Mount.We use a Tape & Reel (TR) case to package the product.It's from the COMBICON SPT-SMD Series.It's mounted by Surface Mount.

1824459 Features


COMBICON SPT-SMD series


1824459 Applications


There are a lot of Phoenix Contact
1824459 Terminal Blocks applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
