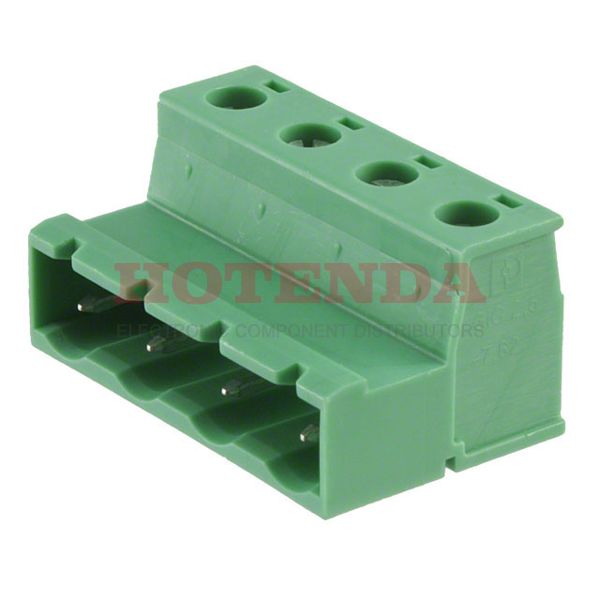

Name: 1828825
Brand: Phoenix Contact
SKU: 1828825
Price: 8.24000 USD
Availability: InStock

new

1828825

Manufacturer part number:1828825

Manufacturer:Phoenix Contact

Description:1828825 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1828825 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	171.999987g
Packaging	Bulk
Published	2011
Series	COMBICON GIC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Male Pins
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	400V
Pitch	0.300 7.62mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	4
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	19.2mm
Length	15mm
Width	30.38mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1828825 Product Details

1828825 Overview

This product is packaged in a Screw, Socket box.Free Hanging (In-Line) is the type of mounting for the device.It's packaged in a Bulk case.There is a product in the COMBICON GIC Series.Mounted by Cable, Free Hanging.With this part, you get a lot of benefits that you won't find in other Plug, Male Pins products.
